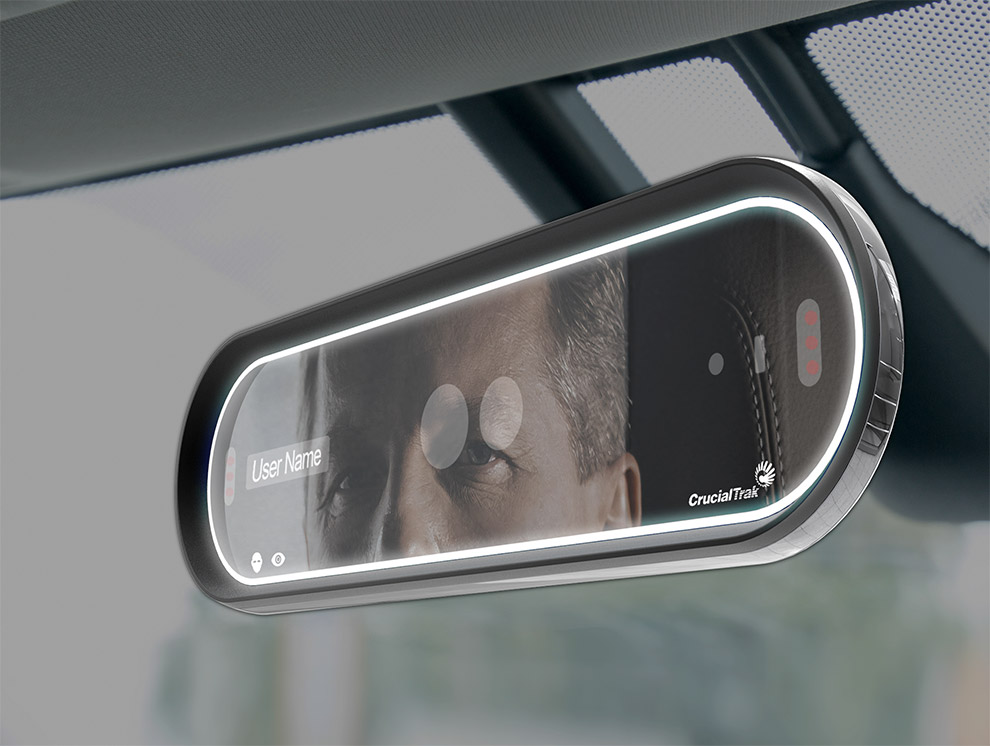

Fleet Glance
Automotive Multi-biometric Access Solution
· Real-time based touchless dual biometric driver recognition : Face and Iris
· Simultaneous 2-factor authentication process
· 100% touchless bio-authentication
· Fast and seamless verification quality
· Intuitive and user friendly UX
Key Features
· Dashcam & E-ZPass(electronic toll collector) integrated
· Real-time based touchless dual biometric driver recognition : Face and Iris
Product View
Biometric Technologies
Face
CrucialTrak’s unique facial recognition technology presents the fastest, most advanced and convenient experience for every users. Facial Images are captured in most accurate 3D patterns from widest angles of access paths.
– Automated face tracking module captures face with wide range of heights (heights range from 120cm to 220cm/3’11” to 7’2”)
– Precisely captures only targeted image (Automatically eliminates other background face images)
– Real-time facial identification under 0.001 second
– Low light level counter-light support
Iris
World’s first auto-tracking mechanism with minimized user’s MTAE (Meantime Attempting Effort).
– Auto Iris Tracking minimizes user’s effort
– Large caliber Zoom Autofocus Control — Long distance identification
– Best image selection algorithm
– Satisfies IEC-62471 Safety Standard
– PWM radiation intensity control
– Partial Iris donut recognition
Key Specification
| Model Name | Fleet Glance | |
|---|---|---|
| CPU | Hexa Core ARM CPU | |
| Memory / Storage | 4G / 32G | |
| Built in Display | Motion Lighting | |
| Operation Mode | Iris / Face (single and multi mode) | |
| Biometric Recognitions | Iris | Face |
| Camera | 5M Pixel | 1.3M Pixel |
| Focus | Auto focus | Fixed focal |
| Recognition Distance | Up to 60 cm | ~2m / ~6.5 ft |
| FAR/FRR of Algorithm | 0.00001/0.01 | 0.001 / 0.1 |
| Capacity | Up to 1,000 Iris | Up to 500 faces |
| Lighting Source | Infra Red | Natural Light (min 600 lux) |
| Data Encryption | AES 256 | |
| Proximity Sensor | Built in | |
| Safety | IEC-62471 | |
| Communications | Wi-Fi(option) , Gigabit Ethernet, RS-485, USB 2.0, Wiegand out, RS485, RS232C | |
| Input / Output | Out : Relay X 1, GPO x3(open drain port) | |
| Connections | 18p socket, RJ45, HDMI micro 4p(Debug) ,USB 2.0(Debug) | |
| Power | 12V DC | |
| External Interface | USB 2.0 & HDMI(Debug) | |
| Event Log Capacity | 100K events | |
| Remote Control | Built in WEB server | |
| Operating Temperature | – 20 ˚C to 70 ˚C / – 68 °F to 158 °F | |
| Operating Humidity | 5% to 80% | |
| Housing Materials | Flame retardant ABS, Poly Carbonate, PP | |
| Management SW | CRUAMS (CrucialTrak Access Management System) | |
| Certifications | CE, NRTL, TUV, FCC, KC | |
