SpeedTrak™ RoboArm
Benefit from maximized space efficiency with highly flexible SpeedTrak™ RoboArm gate.
SpeedTrak™ RoboArm is at the forefront of innovation. RoboArm can work as both wide & standard gate body with single form factor by adjusting the angle of the joint. Benefit from maximized space efficiency with highly flexible SpeedTrak™ RoboArm gate.
• Maximized space efficiently
• Unique & innovative design
• Quick movement & low power consumption
• Reliable & simple structure
• User safety feature
• Auto switching by proximity sensing
• SW, SDK support for remote management of central security center
• Easy and simple installation process

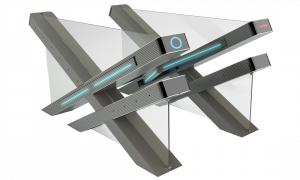

Product View
Key Specification
| Model Name | SpeedTrak™ RoboArm | |
|---|---|---|
| Body Dimension (WxHxD) | 7.9” x 36” x 77.2” (200 x 915 x 1960 mm) | |
| Throughput | 25 ~ 50 persons / min (auth. mode & automatic door mode) | |
| Movement | Adjustable Joint Movement | |
| Aisle Dimension | 19.7” to 47.2” (500 to 1200 mm) adjustable | |
| Height of Panel | 35.4” (900mm) | |
| Opening/Closing Speed | Standard aisle | 0.4 sec ~ adjustable |
| Wide aisle | 0.8 sec ~ adjustable | |
| IN/OUT WAY | Auto Switching by priority of proximity | |
| Proximity Sensing | 3.9” ~ 78.7” adjustable (10cm ~ 2m) | |
| Reader | Not included, User customizable | |
| Main Materials | AL, Stainless Steel, Steel, PC, Tempered glass, etc. | |
| Panel(1) | Hard coated PC, Acrylic acid resin or Tempered clear glass | |
| Finish | AL Anodizing, Stainless Steel | |
| Power | AC 110~220V, 50/60Hz | |
| Modes | Normal Close, Normal Open | |
| Remote Management | M.W.C.(2) | via Ethernet |
| Remote Controller | via wireless key fob remote controller or wired button array | |
| Tailgating | Protected | |
| Display | Pictogram & Symbol indicator | |
| LCD for system status display & configuration | ||
| Sound | Supported | |
| Safety | System failure | Fail Safe / Fail Secure selectable |
| Power failure | Can be opened easily by hand | |
| Shock absorbing | By accelerating and decelerating speed control | |
| Emergency stop | Object sensing | |
| Mechanical Lock | Supported | |
| Operating Temperature | 32° to 113°F / 0° to 45°C | |
| Operating Humidity | 5% to 95% | |
| Certifications | UL, CE, FCC, KCC certified | |
| Connections | Ethernet, RS-485, RS-232 | |
| Patent | Patent pending | |
| Warranty | Ass’y : 2 years | |
| Driving Parts : 5,000,000 times and 5 years | ||
Dimensions
