Solo Palm
100% Touchless Biometric Reader with Compact and Economic Solution
· High-speed verification
· 100% touchless bio-authentication
· Intuitive user friendly UX
· Fast and seamless verification quality
· Internal RFID Reader (Optional)
Key Features
· 1 Biometric Authentication Supports: Palm Vein (RFID optional)
· Clear Image Scoring Algorithm?
· Smart LED Leader Status Indicator
· Tamper Protection Alarm
Product View
Key Technologies
· AES 256 Data Encryption
· 8GB Memory Option
· Ethernet, Wiegand out(26,34,35), USB3.0 Communication
· 100,000 Events Log Capacity
· RFID Card Operation Optional
· Sound and Visual Verification Support
· Built-in Web Server Remote Control
Biometric Technologies
Palm Vein
CrucialTrak’s Full Touchless palm vein recognition, simultaneously interlocked with fingerprint recognition, provides the fastest learning, most accurate, and highly comfortable identification experience, with the design built by Bio-Mechanism UX analysis.
– Advanced matching algorithms ensure high level of accuracy
– Contactless user interface eliminates hygiene concerns
– Less than 0.00001% false acceptance rate
Application
∙ Access Control, Time & Attendance, Door Lock Solution
∙ Most economical and practical migration from a card system to a biometric system
Key Specification
| Model Name | Solo Palm | Remark |
|---|---|---|
| CPU | 2G Hz Hexa Core ARM CPU | |
| Memory / Storage | 2G / 8G | |
| Built in Display | Motion Lighting, Color changing | |
| Color | Pearl Black | |
| Operation Mode | Palm Vein and RFID (single and multi mode) | |
| Biometric Recognitions | Palm Vein | |
| Recognition Distance | 35 ~ 76mm / 1.4 ~ 3.0in | |
| FAR/FRR of Algorithm | 0.00001/0.01 | |
| Capacity | 500 palms | |
| Encryption | AES 256 | |
| Safety | UL60950-1, EN60950-1 | |
| Built in RFID reader | 13.56MHz, ISO14443A/B, ISO-15693, NFC | |
| Speak Out | Sound effect | |
| Dimensions | 132(W) x 85(D) x 132(H) / 5.19(W) X 3.36(D) X 5.19(H) | mm/in |
| Weight | 0.5 / 1.1 | kg/lb |
| Communications | 100Mbit Ethernet, Wiegand out | |
| Input / Output | Exit in, Door status in, Fire in(24V enable), Relay X 1 | |
| External Interface | USB 2.0 & HDMI(Debug) | |
| Event Log Capacity | 100,000 events | |
| Remote Control | Built in WEB server | |
| Face Image Enhancement | WDR (Wide Dynamic Range) function | |
| Power | 12V DC / 3A | |
| Languages | English (Customization available) | |
| Operating Temperature | 0 ~ 60 / 32 ~ 140 | ˚C/°F |
| Operating Humidity | 5% to 80% | |
| Certifications | CE, NRTL, TUV, FCC, KC | |
| Housing Materials | Flame retardant ABS, Poly Carbonate, PP | |
| Management SW | CRUAMS (CrucialTrak Access Management System) | |
| Connections | 18p socket, 8p Ethernet Socket, HDMI micro, Standard USB2.0 | |
| Mounting | Default wall mounting bracket |

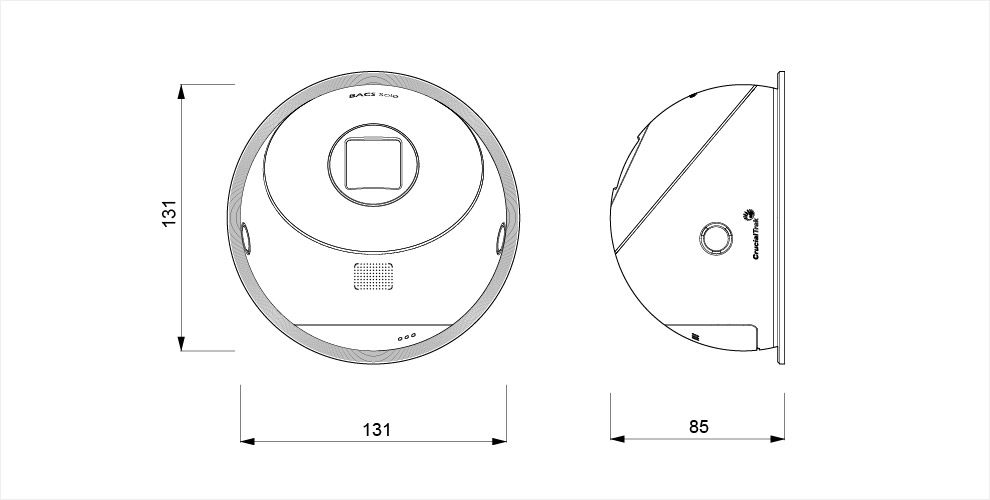

Dimensions
Available Models
• BSP-A001: All biometric reader
• BSP-R001: Biometric with RFID card reader
User Guide
Palm Vein Recognition

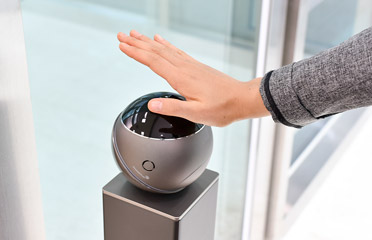

Spread your fingers and place your hand perpendicularly to the palm vein sensor. Align the center of your palm with the center of the sensor. Then move your hand slowly and place it 3.5-7 cm (1.3-2.7 in) from the product. The palm vein sensor will scan your palm and the mode icon will blink blue. Remain still while your palm vein is being scanned
