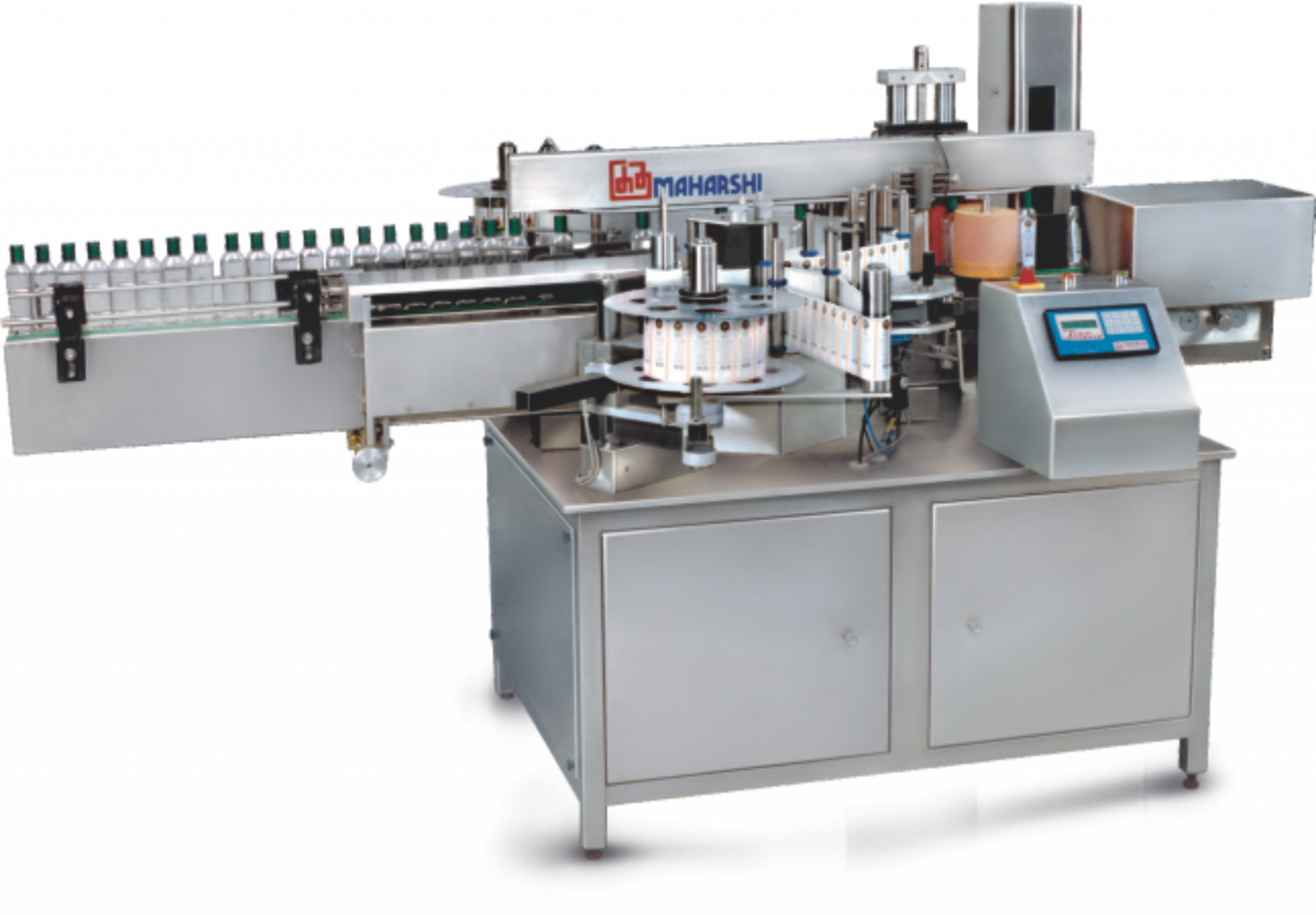

Double Side Labelling Machine

Specifications
  • Speed: 100/200/300 BPM
  • Label Length: 8 to 300mm.
  • Label Height: 95/125/225/(std.) above 225mm (optional)
  • Dispenser Motor: Stepper/Servo
  • Stop Tolerance: +/- 0.5 to 0.75mm (servo)
  • Accuracy on dispenser: 0.75 to 1.00mm (stepper)
  • Roll Dia: 350mm std. & 550mm (optional)
  • Product: side belt conveyor with diff. speed Nylon Twin-Feed Worm Assy
  • Feeding & Separation: Flat / Oval Bottle (Change Part as per Container)
  • Product Holding: Specially designed spring loaded/cushion type top belt.
  • HMI: Feather touch keypad (std.) / Touch HMI or Ind. PC (optional)
Features

• Single side or double side simultaneously on any shape & size containers.
• Speed up to 100-200-300 containers/min.
• Digital Servo Technology.
• Two label dispensers operates independently which allows different size of label application on either side.
• Unique spring loaded twin worm system virtually eliminated the use of any tools making it toll-less operation
• Spring action feed warm / feed screw ensures high safety to containers in case of toppling down does not damage.
• 3 Axis label dispensers allows any degree of label dispensing possible for any shape & bottle.
• Aprat form feed screw system machine can be supplied with belt orientation system for multi product handling without change part.
• Very unique notch orientation system for registered/fix position of label is possible with us.

Brochure

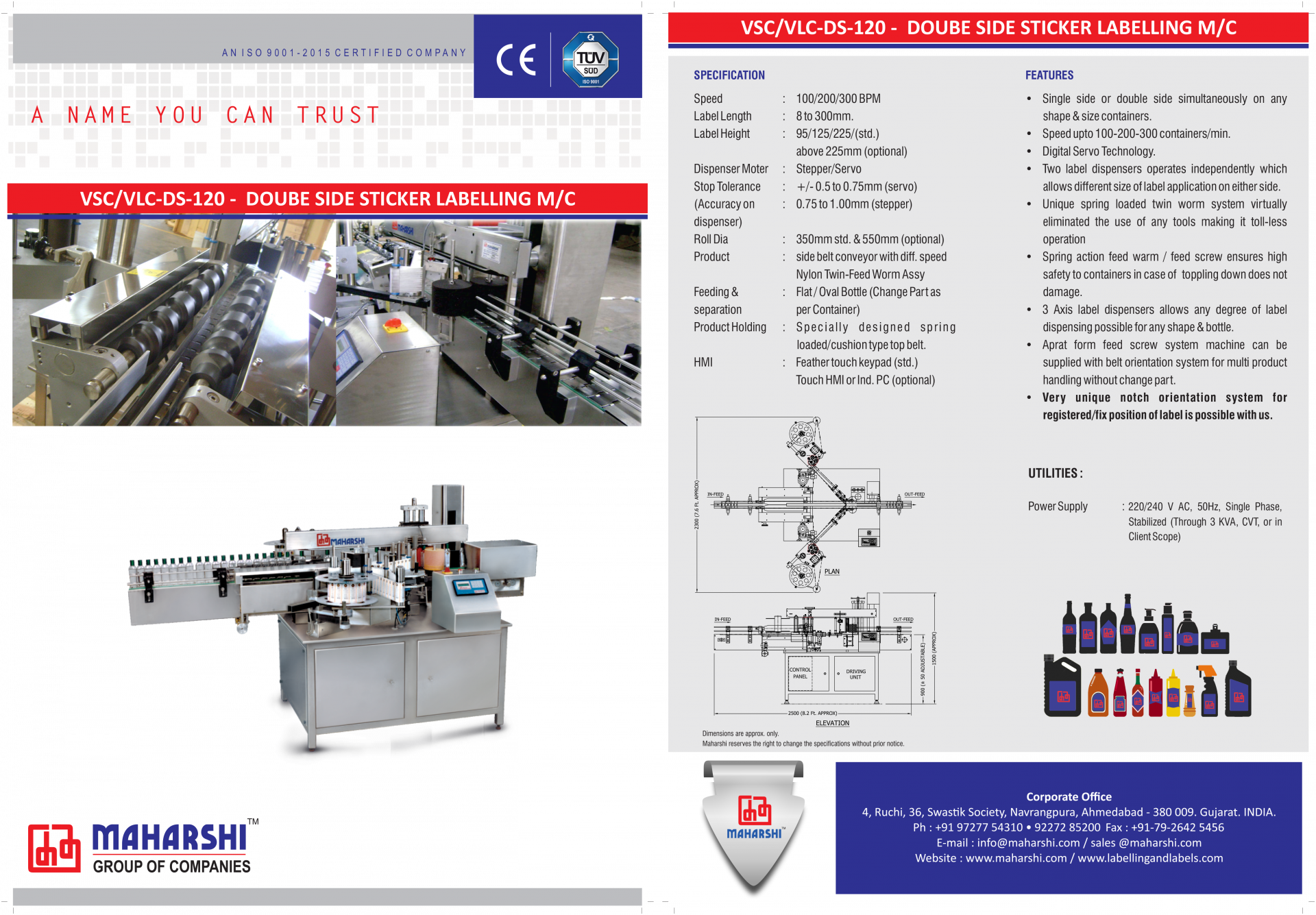

Double Side brochure
Videos
Specifications
  • Speed : 100/200/300 BPM
  • Label Length : 8 to 300mm.
  • Label Height : 95/125/225/(std.) above 225mm (optional)
  • Dispenser Meter : Stepper/Servo
  • Stop Tolerance : +/- 0.5 to 0.75mm (servo)
  • Accuracy on dispenser: 0.75 to 1.00mm (stepper)
  • Roll Dia : 350mm std. & 550mm (optional)
  • HMI : Feather touch keypad (std.) Touch HMI or Ind. PC (optional)
Features
  • Automatic Sticker Labelling machine suitable for Top application on the carton/boxes
  • Speed: up to 120 CPM (depending upon operators efficiency/ feeding arrangement)
  • Imported product sensor
  • Label sensor and microprocessor controlled SERVO dispenser
  • Suitable for label width up to 95 mm.
Brochure

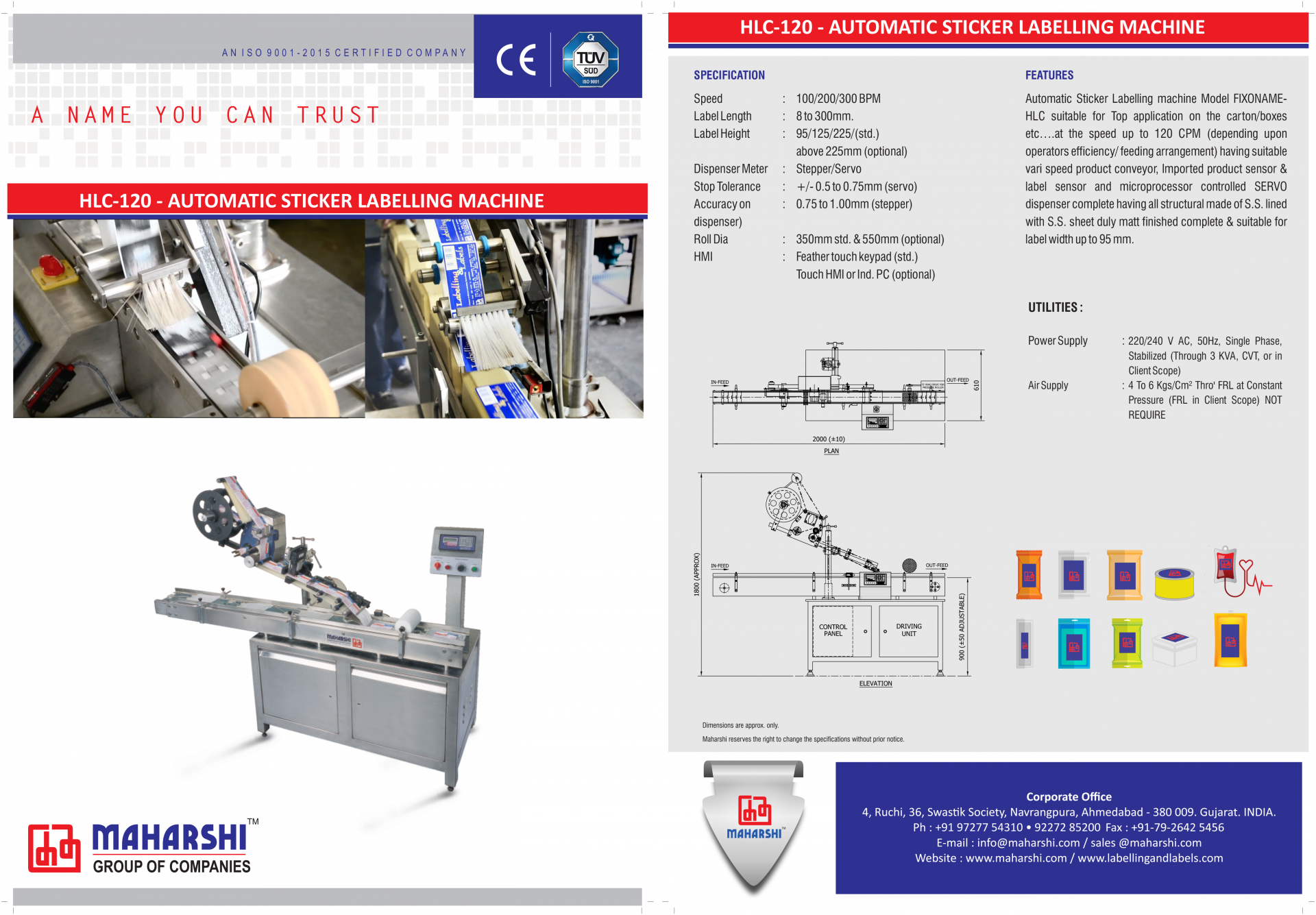

HLC-120 brochure
Videos

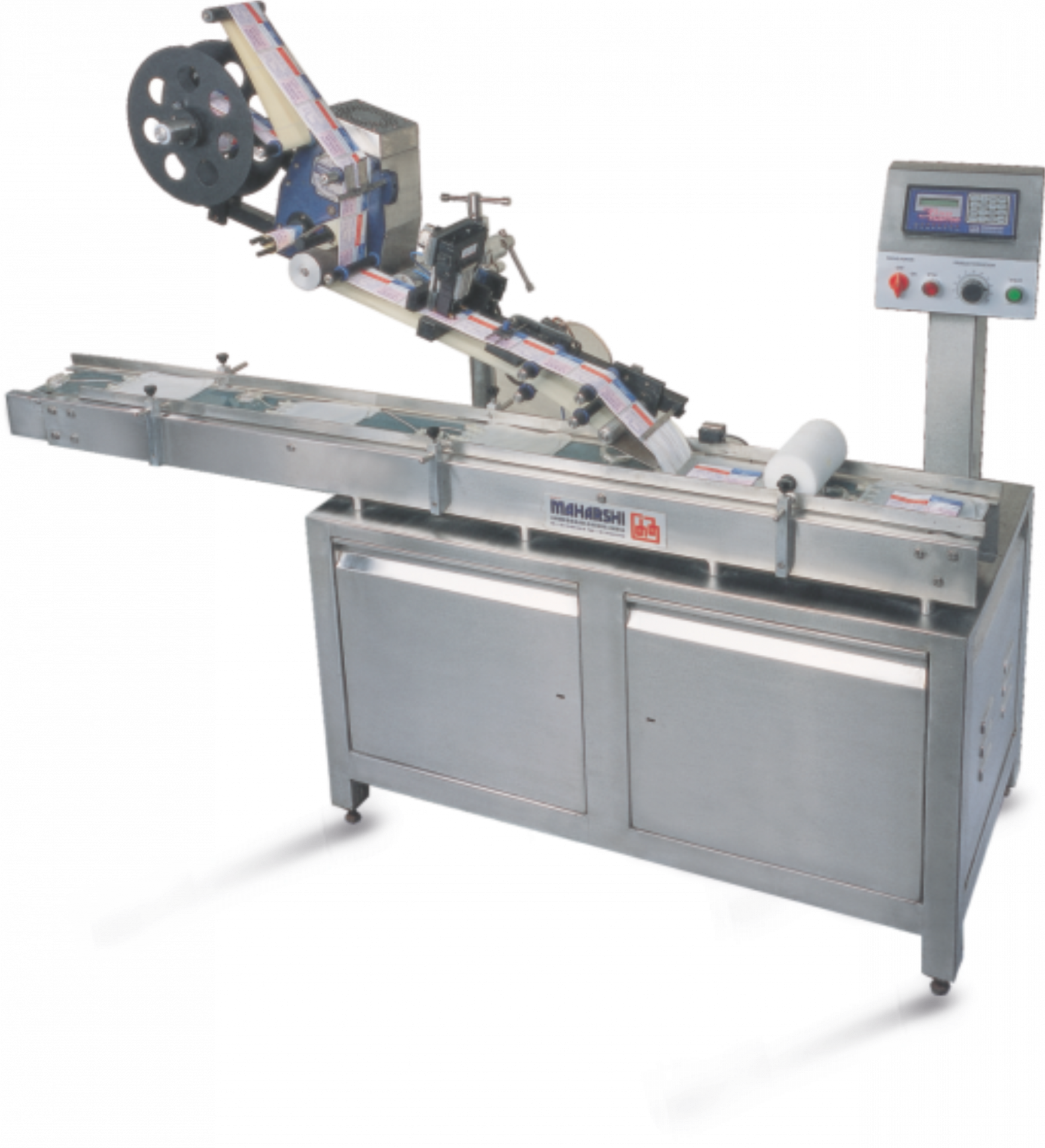

HLC-120 Automatic Sticker Labelling Machine

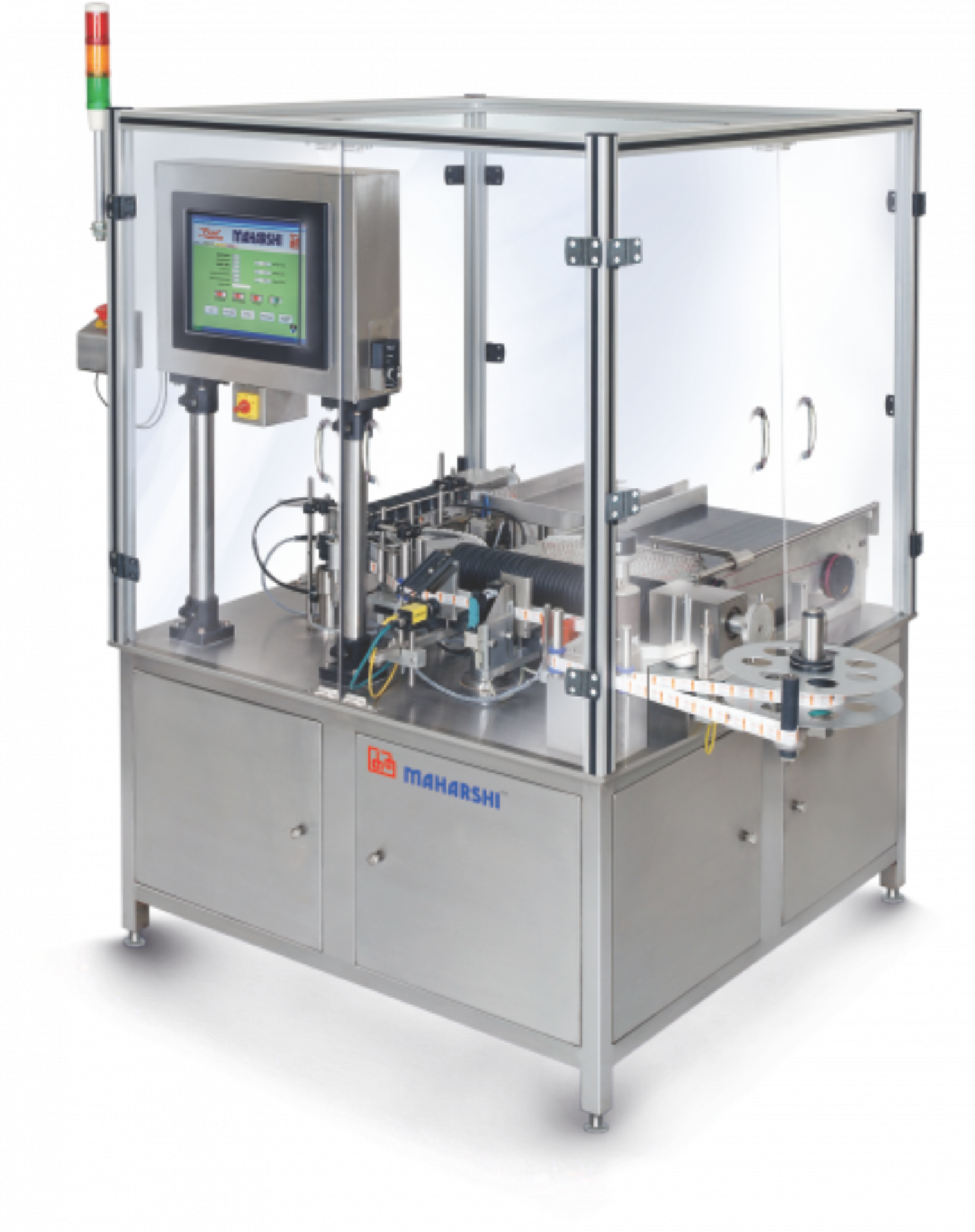

VSC-HS-A/V Automatic Sticker Labelling Machine

Specifications
  • Speed : 100 to 600 Amp./vials per min.
  • Label Length : 8 to 300mm.
  • Label Height : 95/125/225/(std.) above 225mm (optional)
  • Dispenser Meter : Stepper/Servo
  • Stop Tolerance : +/- 0.5 to 0.75mm (servo)
  • Accuracy on dispenser: 0.75 to 1.00mm (stepper)
  • Roll Dia : 350mm std. & 550mm (optional)
Features
  • Vertical Small round Container i.e. Ampoule / Vials Labelling machine.
  • Speed: up to 300 CPM.
  • Sizes of 1 to 10 ml Ampoules / 5 to 10 ml vials & up to 95 mm. label width (Height) with change parts.
  • Industrial PC For Display of Vision System
  • COGNEX’ Make on line inspection camera for inspection of
    print code, correct matter, and proper position of printing.
  • Incorrect or illegible prints inspection.
  • Camera is also suitable 2D Data Matrix code, RSS code, OCV/OCR, Barcode & Pharmacode.
  • Safety Cabinet With Acrylic Covers.
Brochure

VSC-HS-AV brochure
Videos
Specifications
  • Speed : 100/200/300 BPM
  • Label Length : 8 to 300mm.
  • Label Height : 95/125/225/(std.) above 225mm (optional)
  • Dispenser Meter : Stepper/Servo
  • Stop Tolerance : +/- 0.5 to 0.75mm (servo)
  • Accuracy on dispenser : 0.75 to 1.00mm (stepper)
  • Roll Dia : 350mm std. & 550mm (optional)
Features
  • Full / Partial Wrap Around Labelling
  • No change parts required for different dia. of containers.
  • Speed of 100 – 200 – 300 containers/min. (depending on the label length).
  • Separate drives for conveyor, wrap around and space creator is useful for precise labelling in case of multiproduct with different label size.
  • For wrap around labelling on rectangular & other shape of bottles/jars.
  • Various types of Rotary labellers are offered depending upon output capacity required.
Brochure

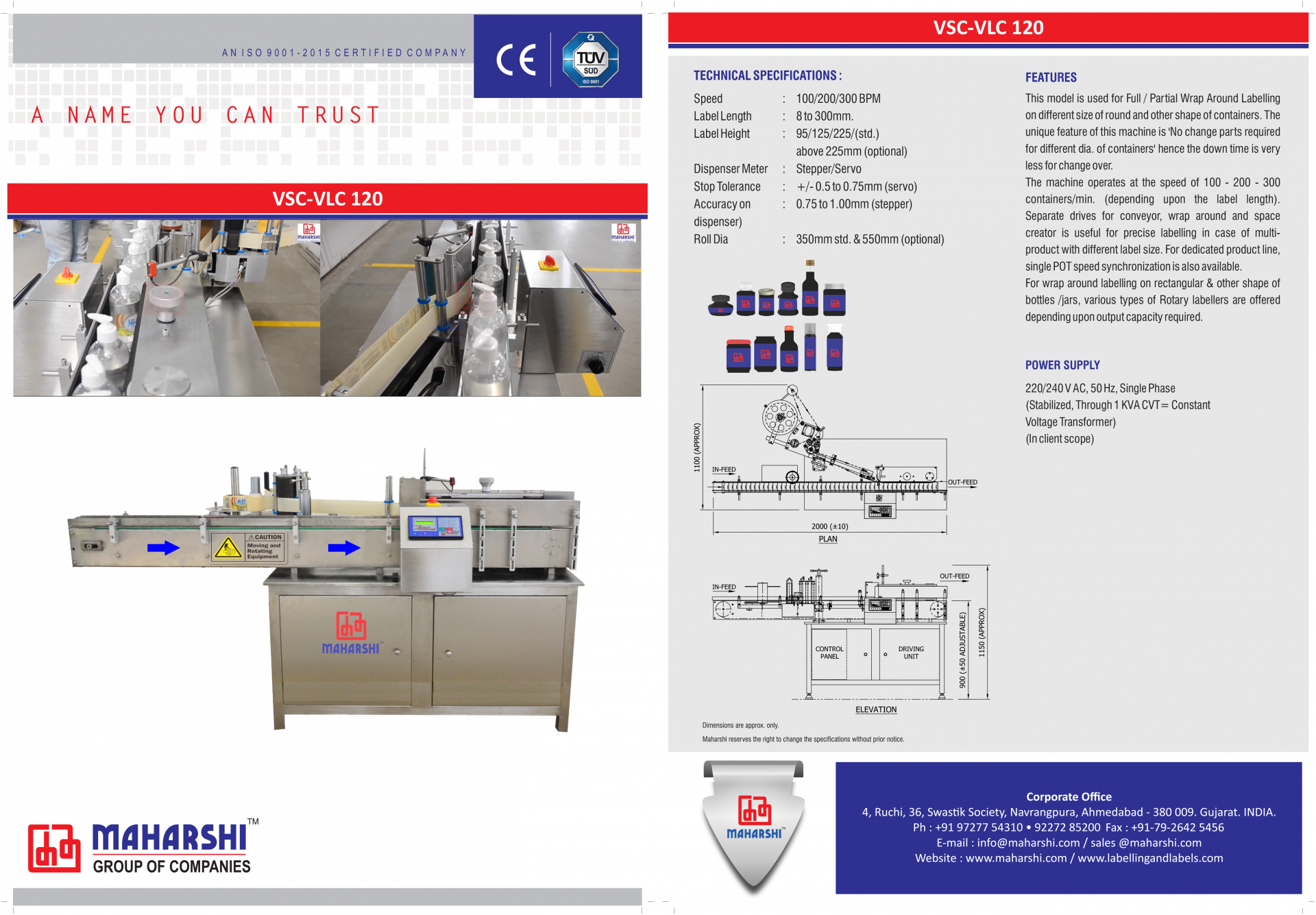

VSC-VLC-120 brochure
Videos

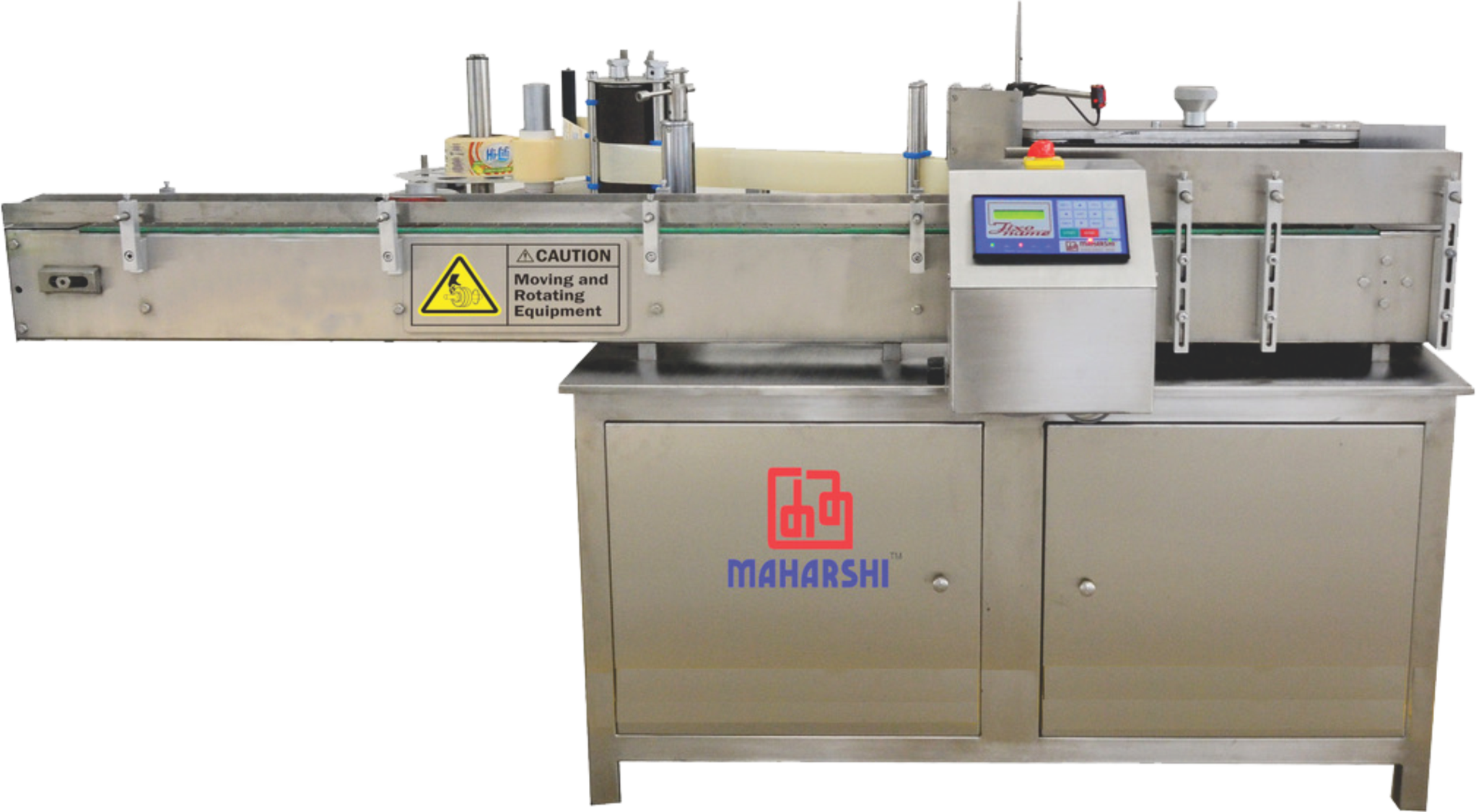

VSC-VLC-120 Full/Partial Wrap Around Labelling

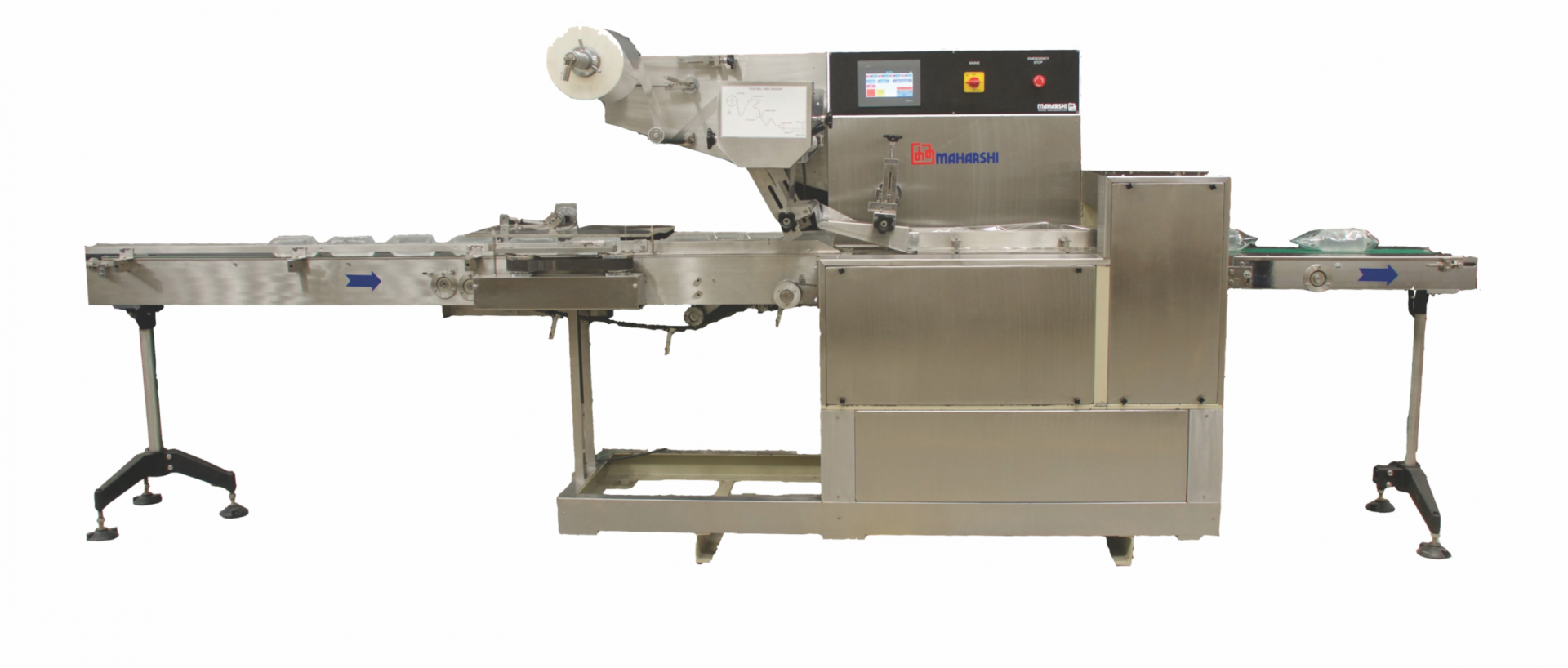

Flow Wrap – Wrap Cylindrical, Cubical and Irregular Shaped Solid Products

Specifications
  • Pouch Type : Center Seal Pillow type
  • Pouch Size Length : 60 to 300mm
  • Width : 35 to 120mm
  • Height : 10 to 70mm
  • Output / min : 100-200-300 Pouches/Min
  • Feeding System : Automatic Feeding
  • Pouch Length : Automatic through Servo
  • Cutting Length : Automatic through Servo
  • Operating & Control Panel: Touch Screen HMI with PLC
  • Temperature Controller : PLC based
  • Roll width : Maximum width 380 mm. / Minimum width 150 mm.
Features
  • Wrap cylindrical, cubical and irregular shaped solid products like I.V. Fluid Bottles/Soap/Bearing/Disposable syringe/Pencil Cells/Piston Rings/Spark Plug/Plastic Spoon/Pre-filled pouches/Scrub pads and Similar Products in pillow pack pouch.
  • Speed range of 200 pouches per minute (speed can vary depending upon product size & packing material).
  • Automatic pouch length adjustment mechanism, adjustable forming unit for a wide range of roll width,
  • Short change over times / minimum change parts.
  • Optional coding unit, overload clutch etc. (at an extra cost).
Brochure

Flow-Wrap brochure
Videos
Specifications
  • Speed : 100/200/300 BPM
  • Label Length : 8 to 300mm.
  • Label Height : 95/125/225/(std.) above 225mm (optional)
  • Dispenser Meter : Stepper/Servo
  • Stop Tolerance : +/- 0.5 to 0.75mm (servo)
  • Accuracy on dispenser: 0.75 to 1.00mm (stepper)
  • Roll Dia : 350mm std. & 550mm (optional)
Features
  • Can be used as Hologram applicator / Label applicator
  • Fixed on existing packing line conveyors.
  • Speeds up to 400 Products/min. (depending upon product specification).
  • Can be used as stand alone unit for labelling where products are firmly held on conveyor line.
  • The hologram / labels pressing and folding device can be separately fitted as per requirement.
  • The hologram / labels can be folded in ‘L’ or ‘U’ shape with special mechanism.
  • The unit can be fixed on counter-rewinder for applying VVM label as well as hologram application on label and film roll for pouches.
Brochure

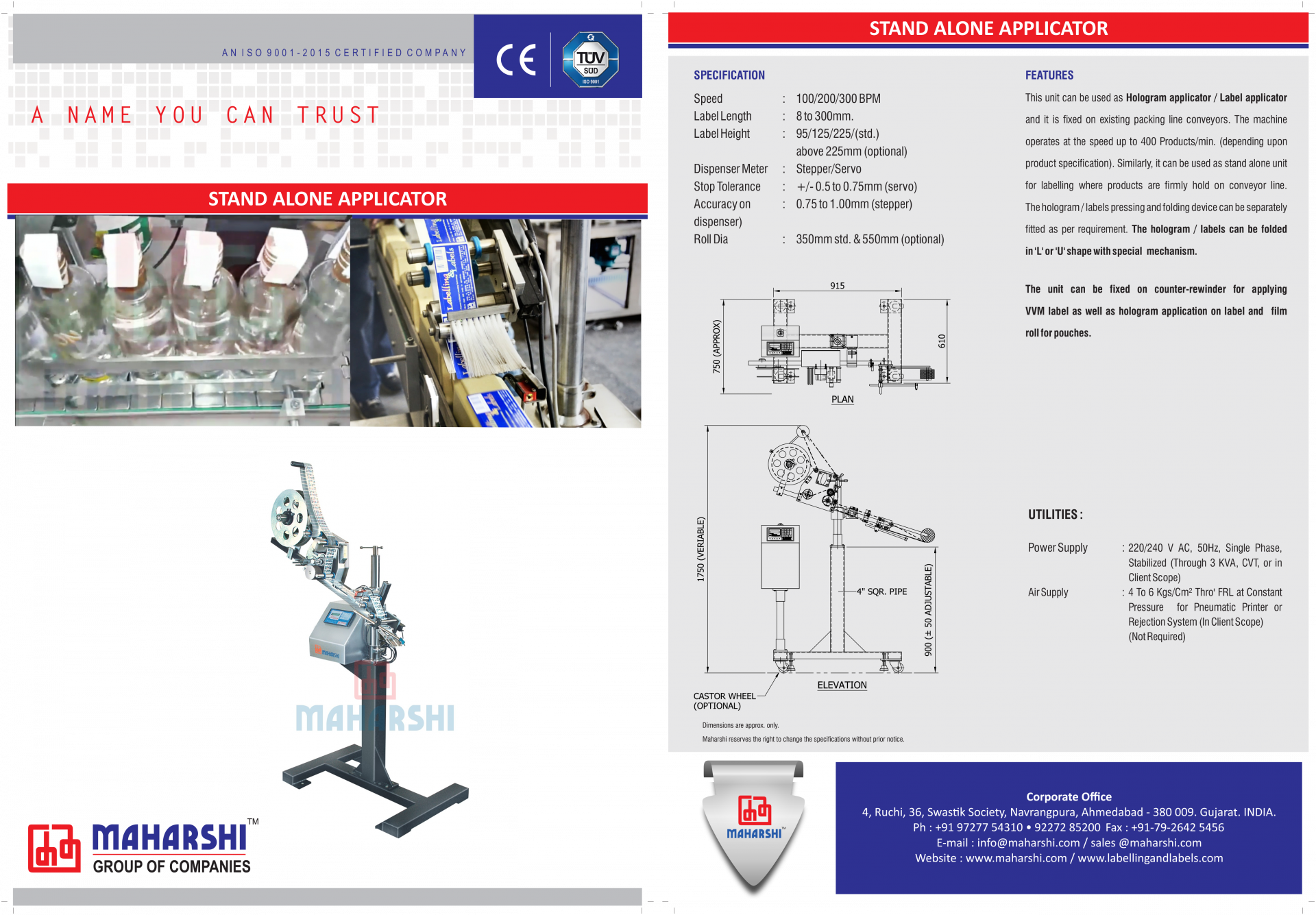

STAND ALONE brochure
Videos

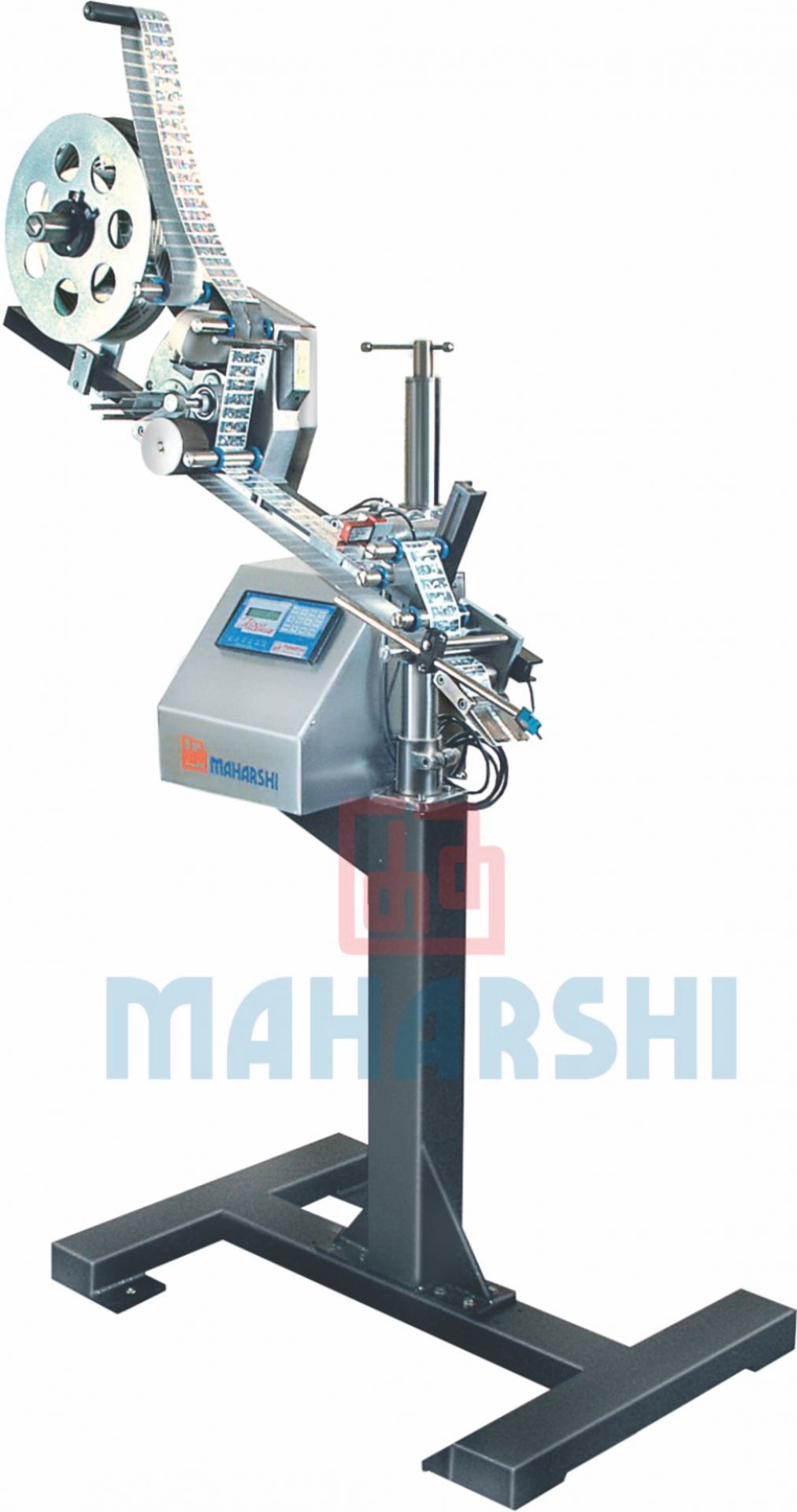

Stand Alone – Hologram Applicator/Label Applicator
